Ongo Compact Plus: The Award Winning Mobile Semen Analyzer

Potential Benefits for Your Practice

  • Time Efficiency: Eliminate wait times for external lab results

  • Cost Reduction: Potential to decrease semen analysis expenses by 30-50%

  • Improved Client Service: Provide on-the-spot analysis and immediate breeding recommendations

  • Consistent Quality: Standardize semen evaluation across your practice

  • Mobility: Perform analyses during farm visits or on-site at breeding facilities

  • Multi-Species Analysis: Calibrated for specific animal species (dog, horse, ram, pig, bull, poultry)

Analysis Type: Computer-aided sperm analysis (CASA)

Device Type: Standalone portable analyzer

Operating Time: 1-2 hours on a single battery charge

Concentration Range: Optimized for 10-100 million sperm cells/ml

Measured Parameters: Sperm concentration, motility, progressive motility

Sample Type: Fresh, cooled, and post-thaw semen samples

Species Calibration: Dog, Horse, Ram, Pig, Bull, Poultry

Data Export: Automatic to USB drive (MP4, PDF, CSV formats)

Stage: Heated slide stage with species-specific optimal temperature settings

Focus: Autofocus with electronic adjustment capability

Illumination: Adjustable for optimal contrast

Certification: CE Mark certified for veterinary use

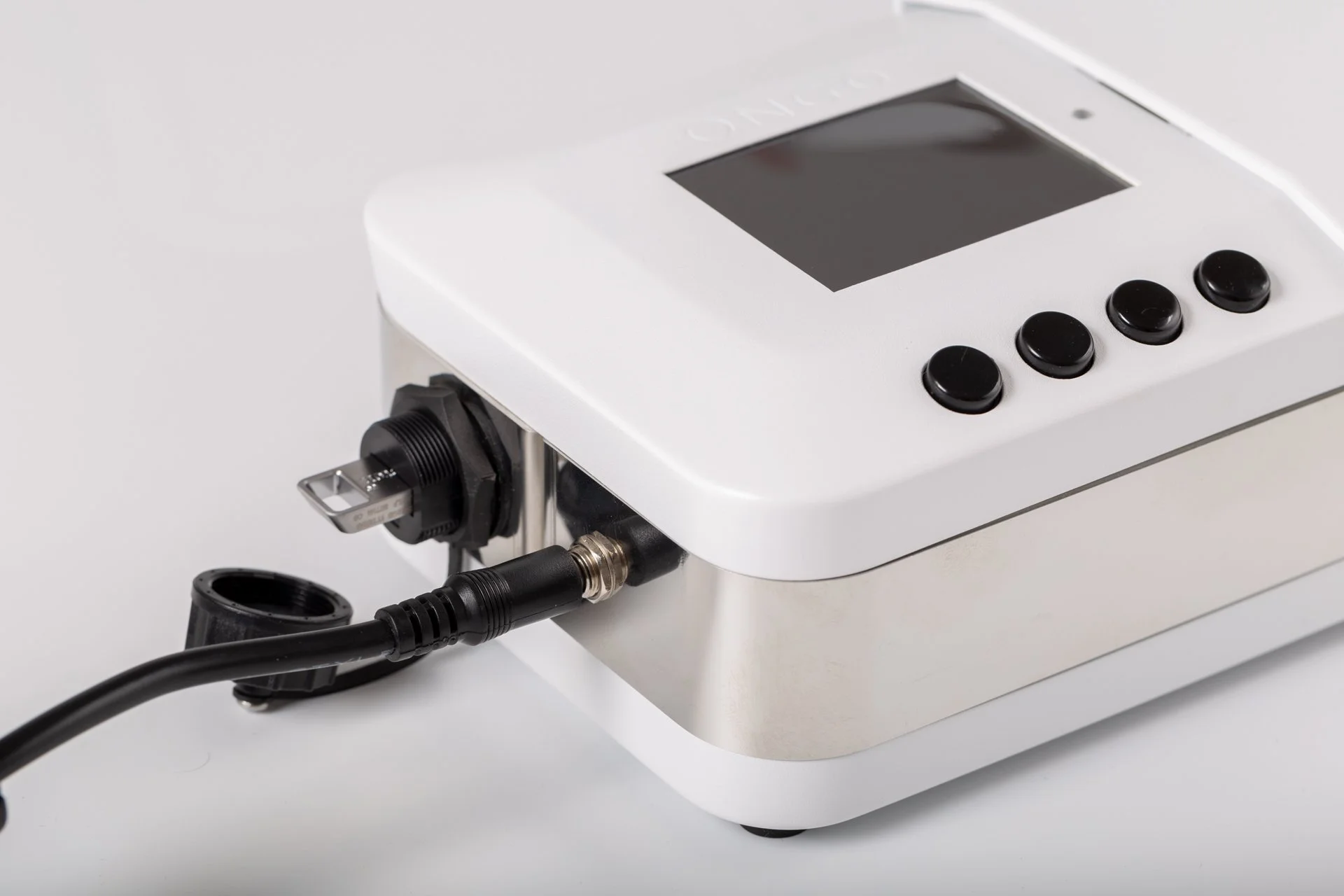

Standalone Portability: Fully integrated, battery-powered device for on-site semen analysis without additional equipment.

Advanced Optics: Autofocus system with electronically adjustable focus for clear sample imaging.

Temperature Control: Heated slide stage with species-specific temperature settings for optimal sample conditions.

Comprehensive Analysis: Measures key parameters including sperm concentration, motility, and progressive motility.

Rapid Results: Provides quick and accurate semen quality assessment within minutes.

Versatile Sample Handling: Analyzes fresh, cooled, and post-thaw semen samples.

User-Friendly Interface: Built-in software guides users through the measurement process for easy operation.

Automatic Data Export: Results automatically saved to USB drive in multiple formats (MP4, PDF, CSV) for easy record-keeping and sharing.

Adjustable Illumination: Customizable lighting for optimal contrast and clear sample visualization.

Practical Application

  1. Collect semen sample (fresh, post-thaw, or cooled) Dilute to 10-100 million sperm cells/ml

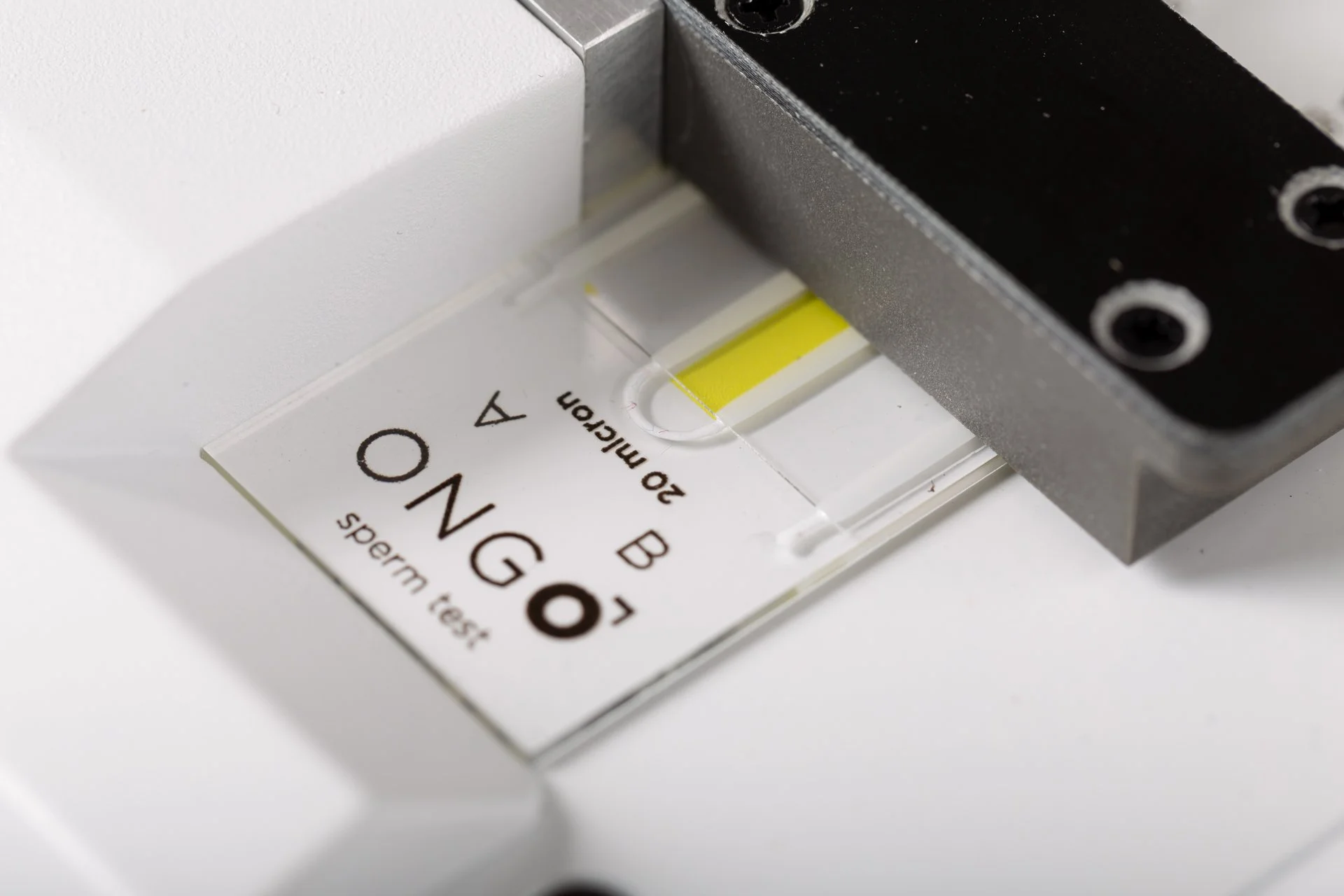

  2. Place sample on Ongo Slide, insert slide into Ongo Compact Plus

  3. Start analysis using the built-in interface

  4. Review results immediately on the device screen

  5. Data automatically exported to USB drive (if connected), remove USB drive and access data on computer

Frequently Asked Questions

    • Ongo Compact Plus Semen Analyzer

    • Protective briefcase with custom foam inserts

    • 32 GB USB drive for data storage

    • Charger (Type F or Schuko)

    • One Ongo Slide Box free of charges (100 measurements)

    • User Manual

  • The Ongo Vision provides highly accurate results comparable to traditional laboratory-based Computer-Assisted Semen Analysis (CASA) systems. In a peer-reviewed study, Ongo technology demonstrated strong correlation with CASA systems for both total and progressive motility measurements across various sperm concentrations.

  • Sample preparation varies by species due to differences in semen density. Each species requires a specific dilution rate to achieve the optimal concentration range of 10-100 million sperm cells/ml for accurate analysis. For example, bull semen typically requires a 1:10 to 1:20 dilution, while sheep semen needs a 1:300 to 1:400 dilution. For detailed dilution rates and preparation steps for each species, please refer to our comprehensive support article on sample preparation.

  • While both are portable semen analyzers with heated stages, CE certification, and autofocus, they have key differences: Ongo Vision:

    • Connects to Android and Windows devices

    • Exports data in CSV, PDF, and AVI formats

    • Allows data input for sample information

    • Features digital zoom capability

    Ongo Compact Plus:

    • Standalone device with built-in display

    • Exports data in MP4, PDF, and CSV formats

    • No data input capability

    • No digital zoom feature

    Choose based on your specific needs for device compatibility, data management, and analysis features.

  • A single sample analysis with the Ongo Vision typically takes between 30 to 50 seconds. This quick turnaround allows for efficient processing of multiple samples in a short time frame.

  • We offer multiple options to ensure you can effectively use your Ongo Vision:

    • Comprehensive online documentation available at our support page.

    • Detailed training videos accessible here

    • Personalized training sessions available upon request

    These resources are designed to get you up and running quickly with your Ongo Vision analyzer.

Resources

How to Get Your Ongo Semen Analyzer

  1. Get Your Custom Quote: Fill out our quick quote form to receive pricing tailored to your specific breeding program needs.

  2. Place Your Order: Once you're happy with your quote, complete your purchase securely online or through our sales team.

  3. Swift Delivery: We'll ship your Ongo analyzer via UPS. Track your package every step of the way with our provided tracking information.

  4. Start Analyzing: Your Ongo device arrives ready to use, complete with a complimentary box of Ongo Slides so you can begin optimizing your breeding program immediately.

Our Guarantee

  • 1-Year Warranty: Your Ongo Vision is covered against defects in materials and workmanship for one year from the date of shipment.

  • 30-Day Money-Back Guarantee: If you're not satisfied, return your Ongo Vision within 30 days of shipment for a full refund (excluding shipping costs).

  • Expert Support: Our dedicated Customer Support team is ready to assist you with any warranty claims or product issues.
